Dynavector 20X2L Low Output Moving Coil Cartridge

£849

Ref Dynavector 20X2L Low Output Moving Coil Cartridge

In Stock
Qty

Description

Product Description

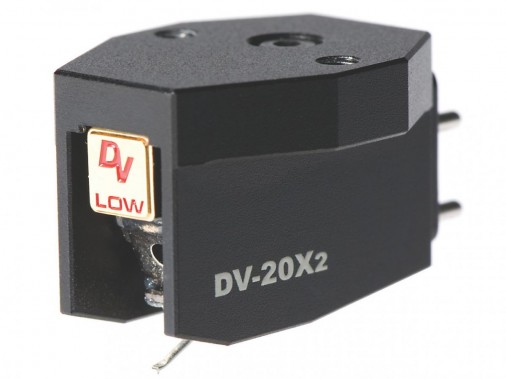

Dynavector 20X2L Low Output Moving Coil Cartridge

DV-20X has a solid aluminum alloy body and a rigid magnet construction similar to XX-2MKII. The cantilever is a 6mm length of hard aluminum pipe with a Micro-Ridge stylus. The magnetic flux damping and softened magnetism along with powerful neodymium magnets gives the 20X2H a healthy 2.8 mV output – suitable for most MM inputs. The 20X2L has an output of 0.3 mV ideal for most MC phono stages.

Both high and low versions of their 20X2 are available ensure for the optimum end result. The high output model is well suited to valve preamplifiers or electronics that only offer MM inputs whilst the low output version offers superb performance when combined with dedicated moving coil inputs.

Related Products:

Linn Cartridge Tag Wires
Lyra STP Stylus Cleaning Fluid
Linn Cartridge Alignment Protractor
Ortofon Digital Stylus Scales

SPECIFICATIONS
Type  High/Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage  2.8mV / 0.3mV (at 1KHz, 5cm/sec.)
Channel Separation  25 dB (at 1KHz)
Channel balance  1.0 dB (at 1KHz)
Frequency response  20 – 20,000Hz (± 2dB)
Compliance  12 x 10-6 cm/dyn
Tracking force  1.8 – 2.2grams
DC resistance  150 ohms / 5 ohms
Recommended load
resistance
 > 1,000 ohms / > 30 ohms
Cantilever  6mm length, hard aluminium pipe
Stylus  Micro Ridge Nude diamond
Weight  9.2 grams

Tech Specs

Technical Specifications

  • Finish

    Black

  • Manufacturer

    DynavectorDynavector

  • Product Type

    Cartridge
