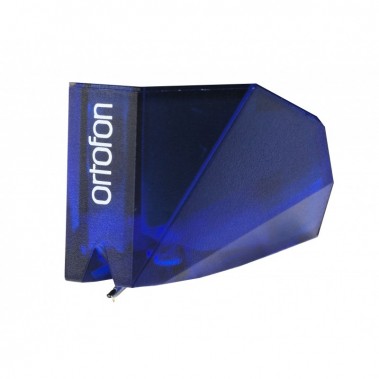

Ortofon 2M Blue Stylus

£130

Ref Ortofon 2M Blue Stylus

In Stock
Qty

Description

Product Description

Ortofon 2M Blue Stylus

Technical specifications

Frequency range – 20-25.000 Hz
Frequency response – 20-20.000 Hz + 2 / – 1 dB
Tracking ability at 315Hz at recommended tracking force *) – 80 µm
Compliance, dynamic, lateral – 20 µm/mN
Stylus type – Nude Elliptical
Stylus tip radius – r/R 8/18 µm
*) Typical value

Equivalent stylus tip mass – 0,5 mg
Tracking force range – 1,6-2,0 g (16-20 mN)
Tracking force, recommended – 1,8 g (18 mN)
Tracking angle – 20°
Stylus colour – Blue
Recommended for following cartridges – 2M Blue, interchangeable with 2M Red

2M styli interchangeability

Physically 2M styli will fit on alternative 2M cartridges bodies, but 2M Series cartridges’ engines, coils and magnets configuration are not quite identical: Red, Blue and Silver are identical, so are the Bronze and Black, so are the true mono variants 2M 78 and 2M Mono.

2M series styli are interchangeable within the below combinations:
– 2M Red, 2M Silver and 2M Blue
– 2M Bronze and 2M Black
– 2M Mono and 2M 78

Special for 2M Red, 2M Silver and 2M Blue:
– 2M Silver features silver coils. Since silver is a better conductor than copper, it provides higher accuracy of sound transmission, therefore 2M Silver is an upgrade compared to 2M Red.
– 2M Blue is an upgrade compared to both 2M Red and 2M Silver thanks to Nude Elliptical diamond which retrieves information from the groove with a higher accuracy.

Tech Specs

Technical Specifications

  • Finish

    Blue

  • Manufacturer

    OrtofonOrtofon
