Ortofon 2M Red Moving Magnet Cartridge/Stylus

£89

Ref Ortofon 2M Red Moving Magnet Cartridge/Stylus

In Stock
Qty

Description

Product Description

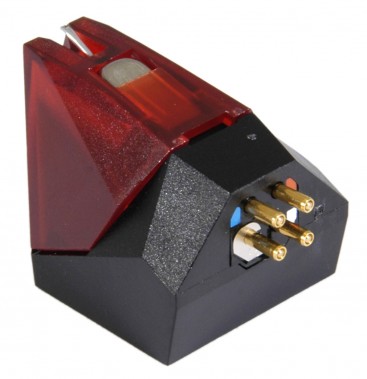

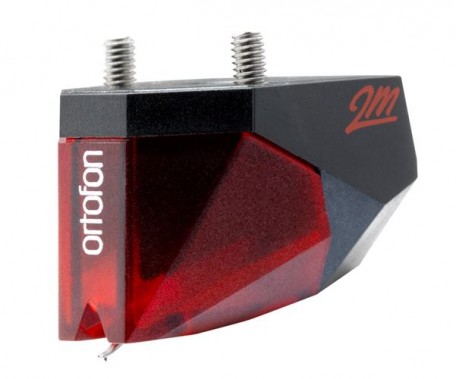

Ortofon 2M Red Moving Magnet Cartridge/Stylus

2M Red features:

– an improved engine, which provides an increased output of 5.5mV and an optimized sound reproduction and a high level of sonic accuracy
– a tipped Elliptical diamond and split pole pins with a copper wire
2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

Related Products:

Linn Cartridge Tag Wires
Lyra STP Stylus Cleaning Fluid
Linn Cartridge Alignment Protractor

2M Red Technical data

Output voltage at 1000 Hz, 5cm/sec.  –  5,5 mV
Channel balance at 1 kHz   –  1,5 dB
Channel separation at 1 kHz  –  22 dB
Channel separation at 15 kHz  –  15 dB
Frequency range at – 3dB  –  20-22.000 Hz
Frequency response  –  20-20.000 Hz + 3 / – 1 dB
Tracking ability at 315Hz at recommended tracking force  –  70 µm
Compliance, dynamic, lateral  –  20 µm/mN
Stylus type  –  Elliptical
Stylus tip radius  –  r/R 8/18 µm
Tracking force range  –  1,6-2,0g (16-20 mN)
Tracking force, recommended  – 1,8 g (18 mN)
Tracking angle  –  20°

Internal impedance, DC resistance  –  1,3 kOhm
Internal inductance  –  700 mH
Recommended load resistance  –  47 kOhm
Recommended load capacitance  –  150-300 pF
Cartridge colour, body/stylus  –  Black/Red
Cartridge weight  –  7,2 g
Replacement stylus unit  –  2M Red (interchangeable with 2M Blue and 2M Silver

Tech Specs

Technical Specifications

  • Finish

    Red

  • Manufacturer

    OrtofonOrtofon

  • Product Type

    Cartridge
